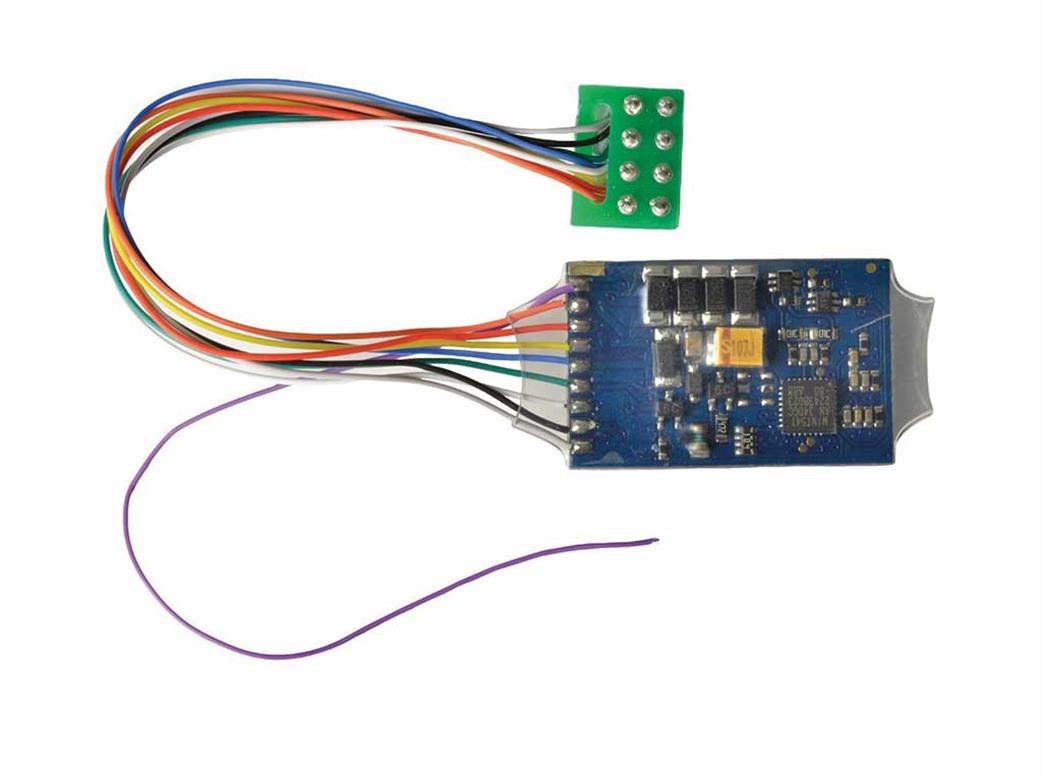

Bachmann 36-566A 4 Function 8 Pin 0.9 Amp Locomotive Decoder RailComPlus & Brake Button Function

A 8 Pin (NEM652) DCC Decoder suitable for models fitted with a 8 Pin DCC decoder socket.

Dual-mode DCC/DC decoder with Back EMF function
4 powered function outputs
0.9A continuous load
RailComPlus® for automatic registration when used with selected DCC systems
Suitable for models equipped with DC motors (including coreless motors)

£35.95

MRP £35.95

Warehouse: 9+
Bristol: 1, Cardiff: 1, Gloucester: 1, Plymouth: 3, Stroud: 1

Fast delivery from Warehouse.

(Product Ref 123475)

Cookies are disabled.
To place an order please call 01453 377030

Have a question about this product? Let us know

Operating Modes
NMRA/DCC with 14, 28 and 128 speed steps
Short and Long addresses
DCC and DC operation (DC operation is de-selectable)
Automatic recognition of operational mode and DCC speed step selection
Supports Lenz® LG 100 braking sections
Supports ABC braking sections

Motor Control Features
Suitable for models equipped with DC motors (including coreless motors)
0.9A continuous load
Motor regulation with pulse width frequency from 10kHz to 50kHz
Motor output overload protection; Back EMF (de-selectable)

Function Outputs
4 powered-function outputs with overload protection
250mA load per output
500mA total load of all function outputs
Shunting speed and momentum key selectable
Brake Button function for realistic control of braking (operates on F2)

Dimensions
25.5mm x 15.5mm x 4.5mm (+ wiring harness)

Default Address
Address 3

Programming
DCC Service Mode & DCC PoM (Programming on Main)

Additional Features
RailCom® Feedback system
RailComPlus® automatic Registration
