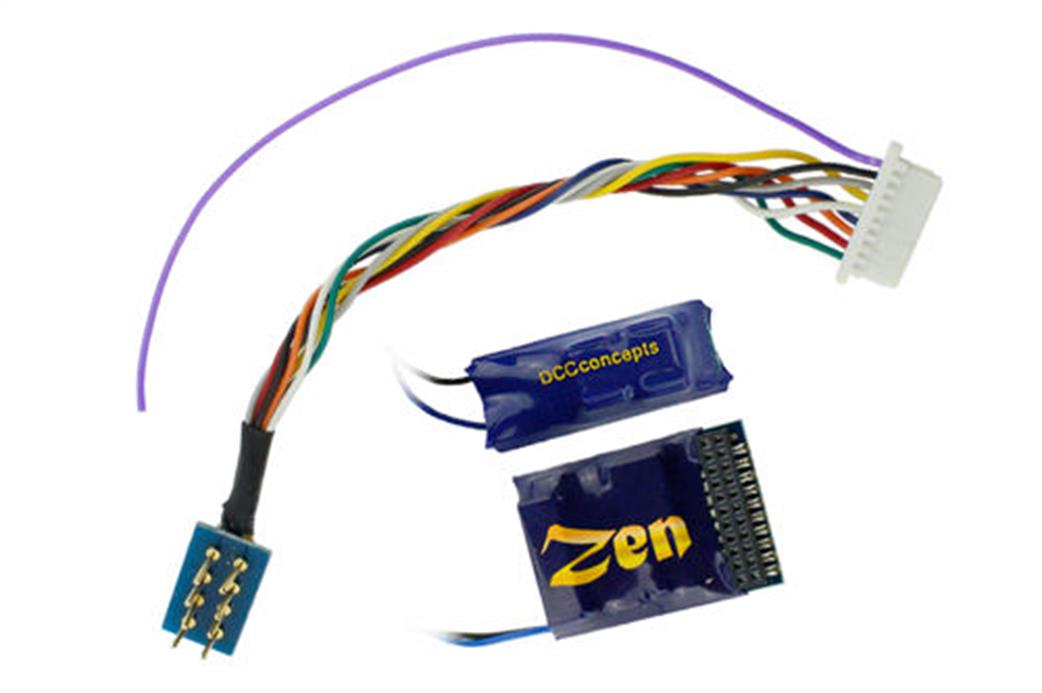

This decoder includes a separate stay alive unit which will aid your locomotives running characteristics during slow running. This unit basically keeps the decoder "alive" for a few milliseconds if dirt or dead spots are located on the track.
DCC Concepts decoder manual and CV settings guide (opens in new tab/window)
Dimensions:
- Length: 22mm
- Width: 16mm
- Depth: 5mm
- Harness Length: 75mm
Specifications:
- Number of Functions: 4
- Number of Pins: 21 Pin Direct with 8 Pin Harness
- Current Rating: 750mA / 1 amp motor drive
- Address Range: 1 to 9999
- Reset Value: CV8 to 8
