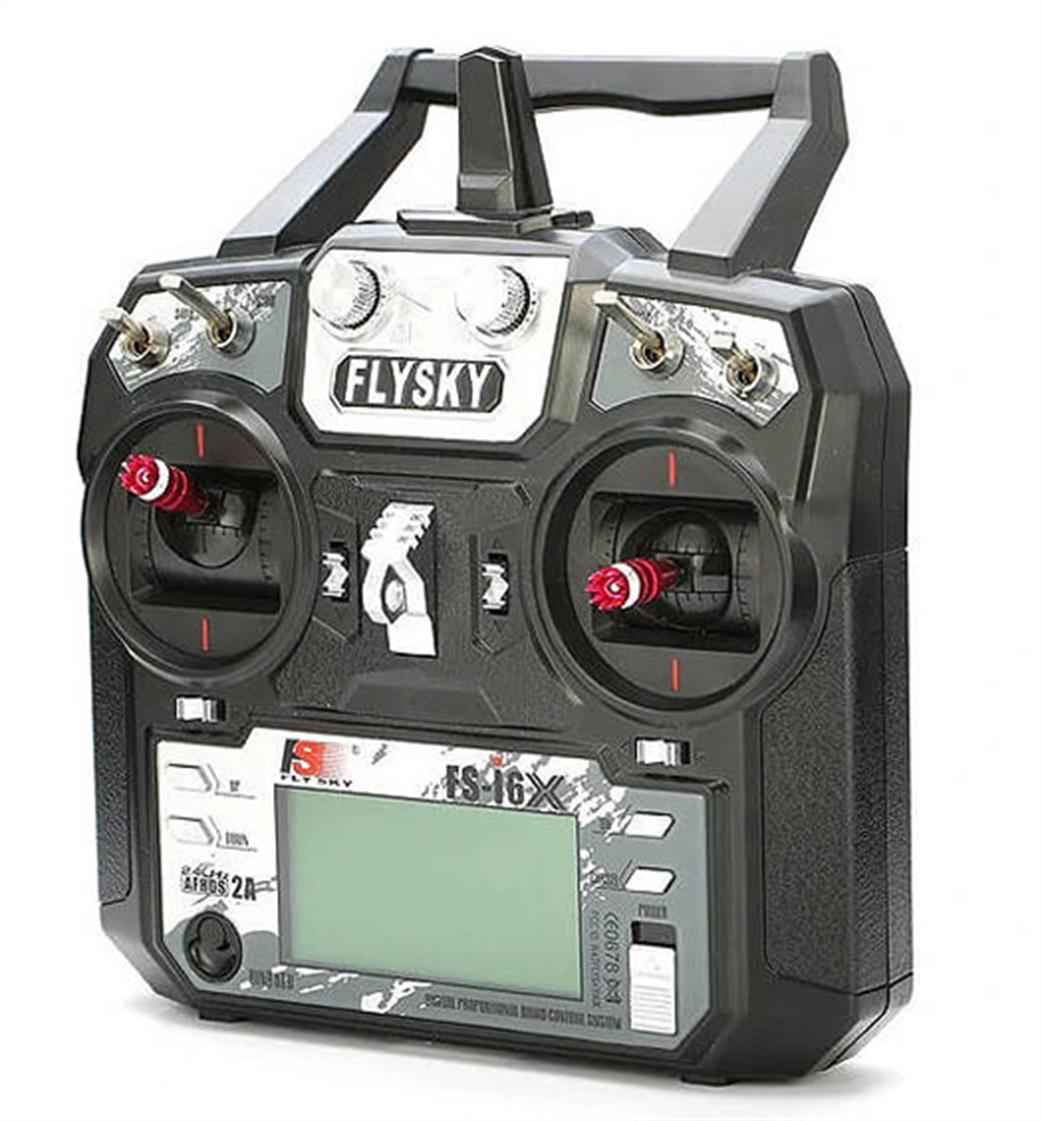

Flysky FS-I6X-IA6BM2 FS-I6X 6CH 2.4GHZ Radio System W/IA6B Receiver Mode 2
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.
FEATURES Bi-directional Communication Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support. Multi-channel Hopping Frequency This system bandwidth ranges from 2.408GHz to 2.475GHz. This is pided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters. Omni-directional Gain Antenna The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection. Unique ID Recgnition System Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation. Low Power Consumption The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life. SPECIFICATIONS (TRANSMITTER) Item: FS-i6X RC Transmitter Channel: 6-10 (Default 6CH) Model Type: Fixed-Wing/Gliders/Helicopter Mode (optional): Mode 2 (Left Hand Throttle) RF Range: 2.408-2.475GHz RF Power: < 20dBm RF Channel: 135 Bandwidth: 500KHz 2.4GHz System: AFHDS 2A / AFDHS Modulation Type: GFSK Stick Resolution: 4096 Low Voltage Warning: < 4.2V DSC port: PS/2 Port PPM Chargeable: No Antenna Length: 26mm (Dual Antenna) Weight: 392g Power: 6V DC 1.5AA*4 Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight Size: 174x89x190mm On-line Update: Yes Colour: Black Certificate: CE0678, FCC ID: N4ZFLYSKYI6X SPECIFICATIONS (RECEIVER) Channel: 6 Frequency Range: 2.4055--2.475GHZ Band Width Number: 140 Transmitting Power: = 20dBm RF Receiver Sensitivity: -105dbm 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system Encoding: GFSK Antenna Length: 26mm * 2 (dual antenna) Input Power: 4.0-6.5V DC Dimension: 47 x 26.2 x 15mm Weight: 14.9g Colour: Black i-Bus Interface: Yes Data Acquisition Interface: Yes Model Type: Airplane / Gliders / Helicopter Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G
