Built to conform to all relevant NMRA DCC standards
High frequency back-emf motor speed control with 14, 28 and 128 step speed control
Supports RailCom
Asymmetrical DCC support
Auto function control - Allows for locomotive start and stop based upon internal timer functions without input from controller
Directional independent lighting with dimming and extensive special effects including steady state, strobe, flicker and flashing
Simulation of fuel burn rate dependent on speed and operating parameters
Motor power output 1 amp continuous, 1.5 amps peak/stall
Four function outputs rated at 200mA each, 500mA max decoder output.
Supports standrad, extended addressing and consist addressing
Low speed shunting mode for finer control of slow running performance
Supports programming on the main for operations mode programming
Support for all programming defined by NMRA RP 9.2.3

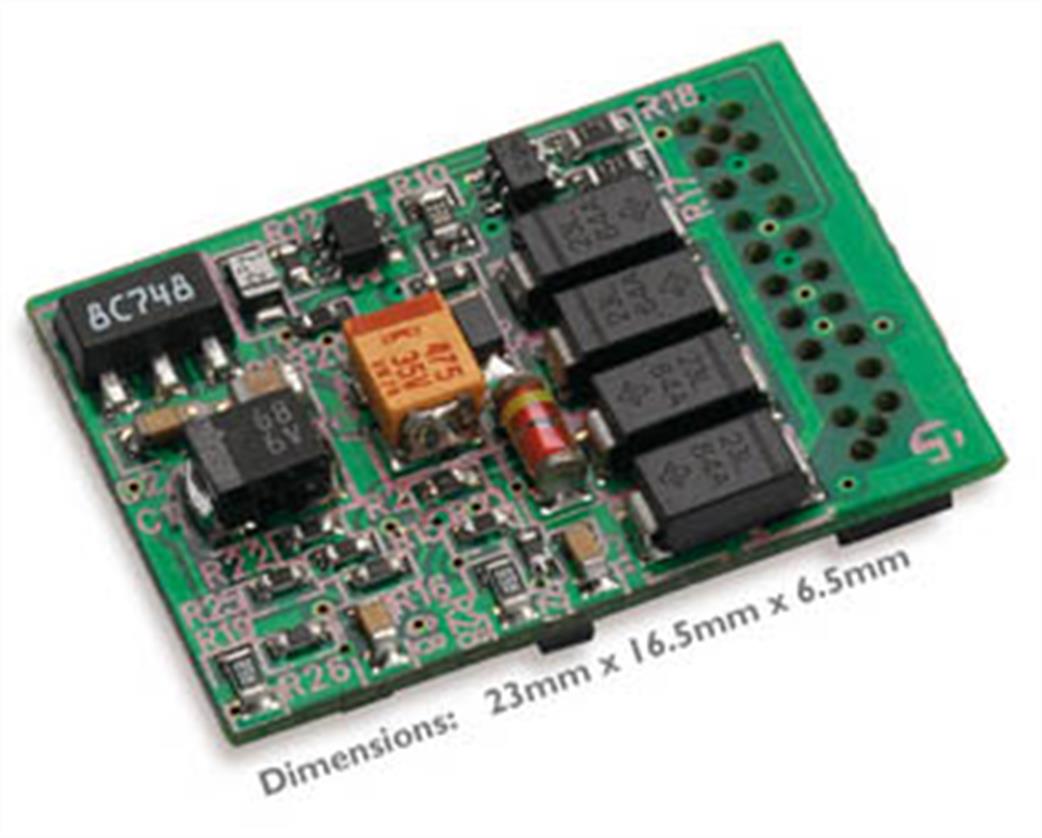

21-pin connector with 8-pin harness supplied.
Supported CVs and default values/settings
|
CV |
Definition |
Min-Max |
Default |
|
1 |
Locomotive Address |
1-127 |
3 |
|
2 |
Start Voltage |
0-255 |
0 |
|
3 |
Acceleration |
0-255 |
5 |
|
4 |
Decleration |
0-255 |
5 |
|
5 |
Max Speed |
0-255 |
255 |
|
6 |
Mid Speed |
0-255 |
48 |
|
7 |
Version id |
10 |
10 |
|
8 |
Manufacturer id |
NMRA |
48 |
|
10 |
BEMF cutout |
1-128 |
128 |
|
17 |
Extended Address High |
192-231 |
192 |
|
18 |
Extended Address Low |
0-255 |
100 |
|
19 |
Consist Address |
0-255 |
0 |
|
28 |
RailCom Communication |
0-7 |
7 |
|
29 |
Configuration Data |
0-48 |
6 |
|
30 |
Error Information |
0-7 |
0 |
|
33-36 |
Accessory Function Mapping |
0-15 |
|
|
50 |
Read/Set Clock Hours |
0-23 |
0 |
|
51 |
Read/Set Clock Minutes |
0-59 |
0 |
|
52 |
Asymmetic DCC Configuration |
0-7 |
0 |
|
53 |
Intermediate Stop Time |
0-255 |
3 |
|
67-94 |
Speed Configuration Table |
0-255 |
|
|
105-106 |
User Identfier Number |
0-255 |
255 |
|
111 |
Signal Timeout |
0-59 |
20 |
|
112 |
Shunting Mode |
0-1 |
0 Off |
|
113-116 |
Light Effect Function Output 0-3 |
0-3 |
0 Steady |
|
117-120 |
Functions 0-3 Dimming Brightness |
0-15 |
15 |
|
121-123 |
Start Delay Time |
0-23:59:59 |
0 |
|
124-140 |
Delayed Event, Time & Control |
|
0 |
|
142-145 |
Fuel/Coal & Water Usage |
0-254 |
254 |
|
146 |
Simulation Control Flag |
0-3 |
0 |
|
150 |
Motor Control Algorithm |
0-1 |
0 |
|
894-895 |
Fuel/Coal&Water Set |
0-255 |
|
CV 29 is the primary control configuration CV. Please refer to the decoder data booklet for configuration of this CV.
Configuration Variables 33-36, 67-94 and 113-145 are tables for configuration of decoder functions and functionality. These functions are default disabled or linear as appropriate. Please refer to the information booklet supplied with the decoder for the use and correct coding of each individual CV within these ranges.
