Train Control Systems DP5 DP5 Board Mounted Decoder

Train Control Systems DP5 Board Mounted Decoder DP5

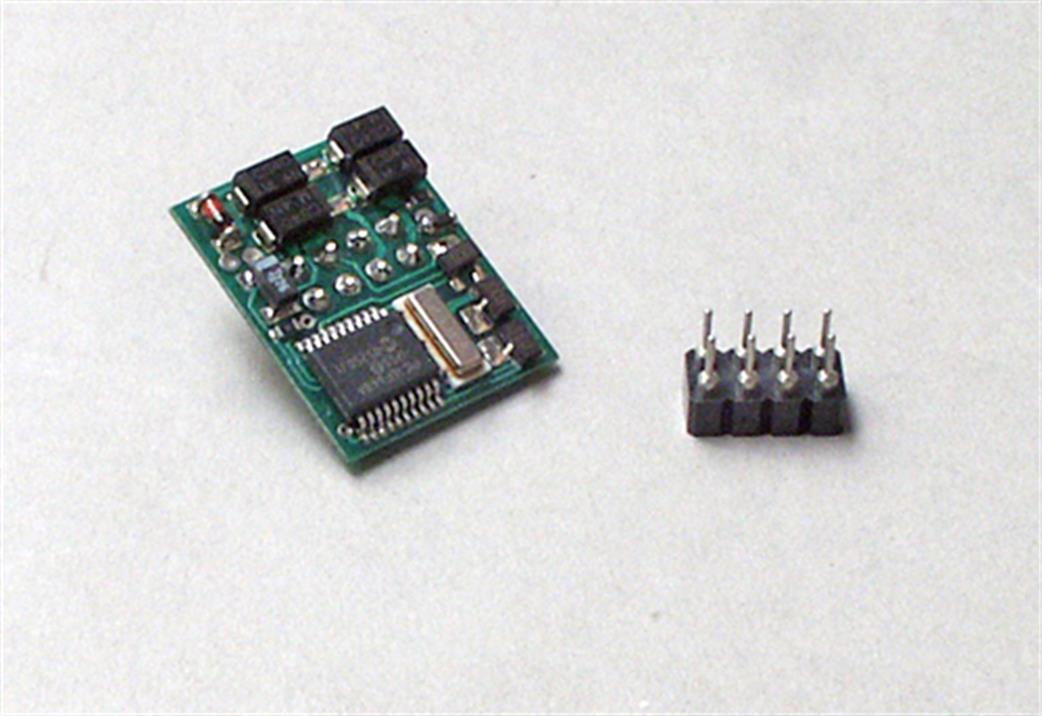

A very simple to install decoder, you plug the actual decoder board into the 8-pin DCC decoder socket!
This board provides 5 function outputs through direct socket connections and solder pads. Ideal for locomotives with extra accessories or custom wiring to allow head and tail lights to be separately controlled.
Rated at 1.3amps continuous with 2 amps peak for motor drive there are five function outputs available. Two functions can provide 250ma, the remaining three outputs are 100ma. some connections needing to be made using solder pads on the decoder board.
Board measures 0.845in/21.5mm length, 0.680in/17.3mm width and 0.165in/6mm height.

£34.50

MRP £34.50

Warehouse: 3

Fast delivery from Warehouse.

(Product Ref 56281)

Cookies are disabled.
To place an order please call 01453 377030

Have a question about this product? Let us know

Clearances inside the bodyshell of many locomotives limit the use of these decoders, but we know they will fit the Heljan OO Hymek. If you find this decoder will fit other British locomotives please let TCS (http://tcsdcc.com) know as they are maintaining a useful list on their web site.
