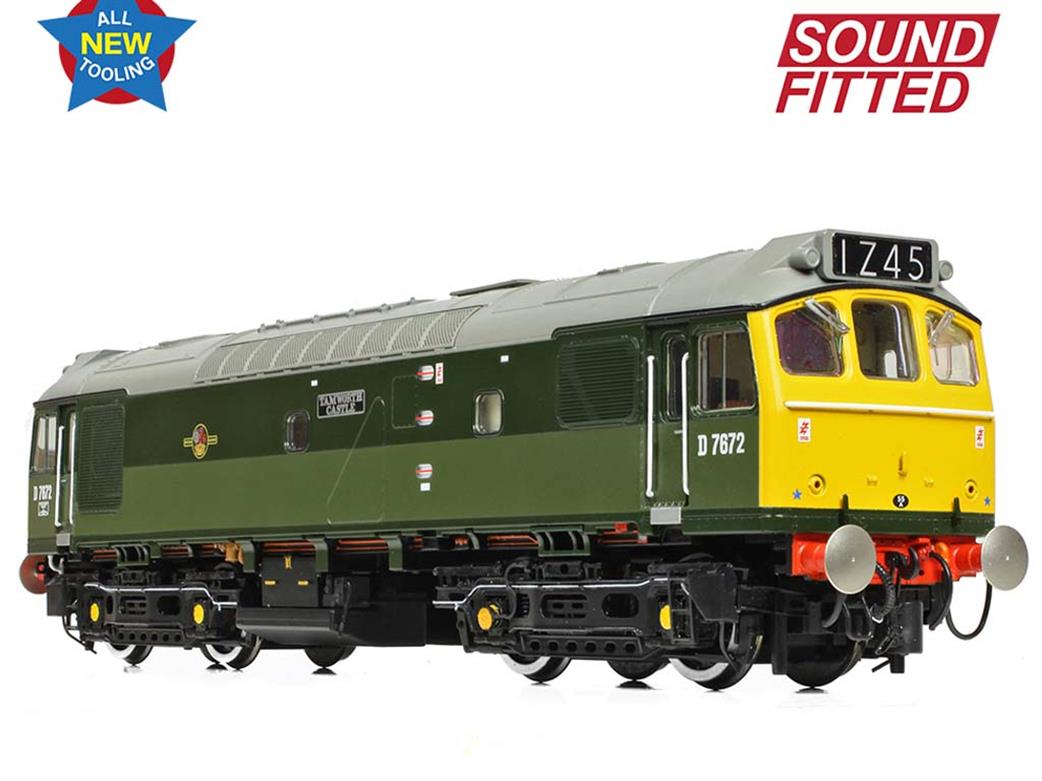

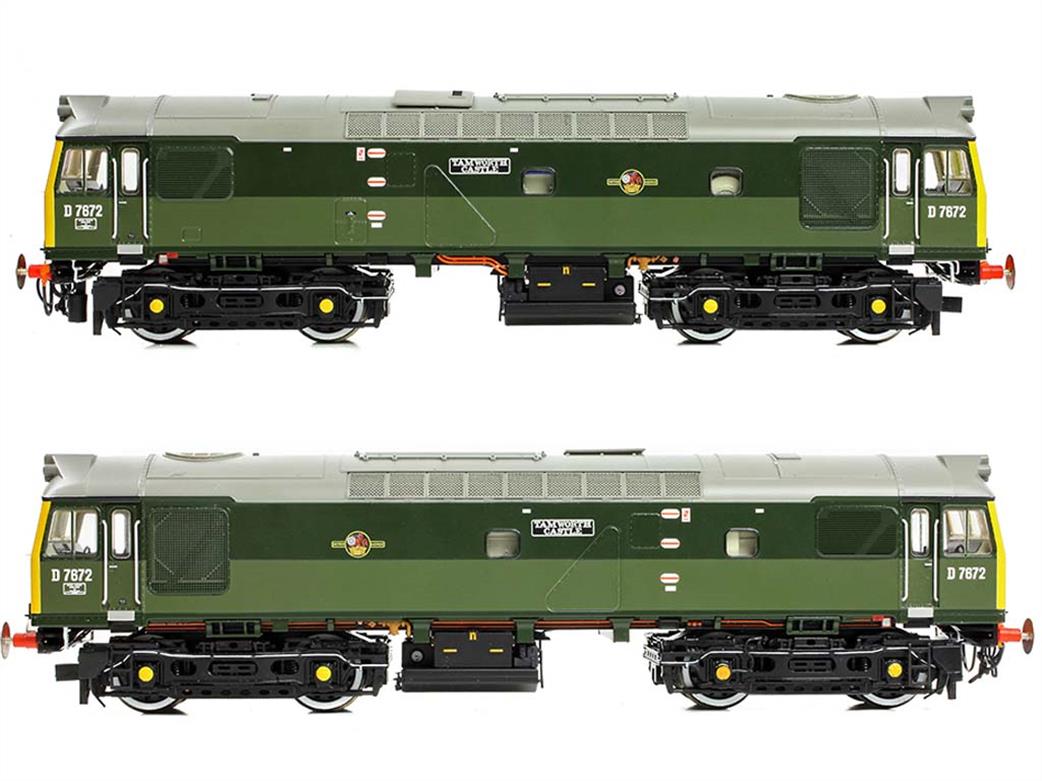

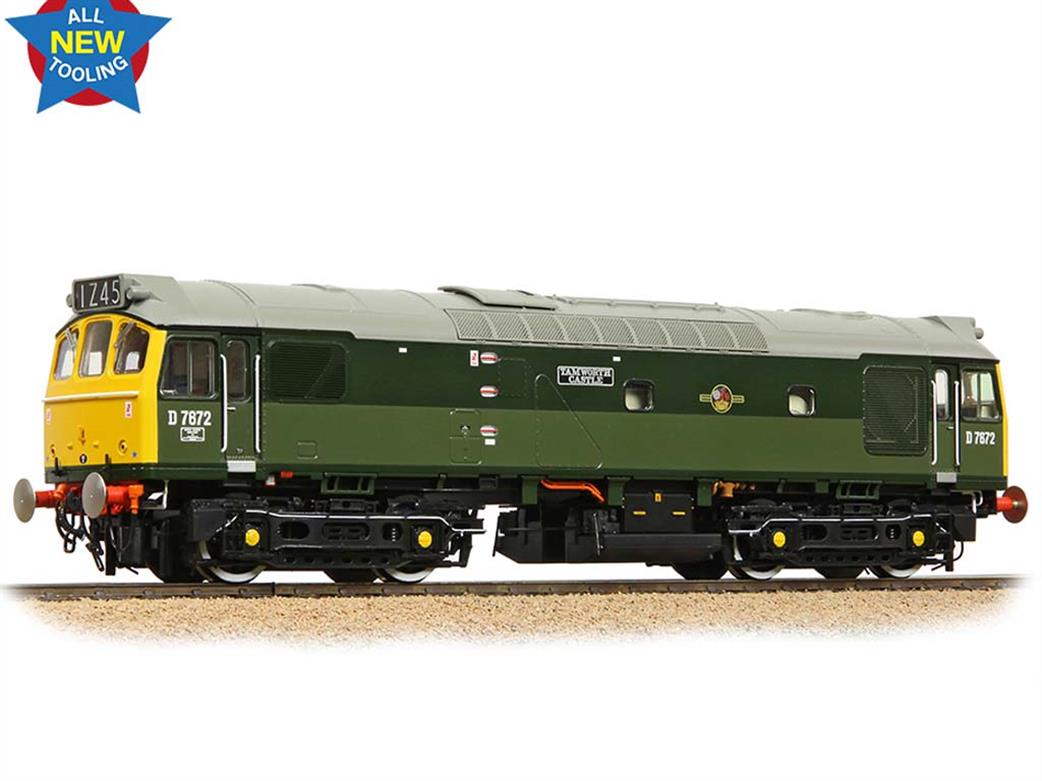

Our new Class 25 is brought to life with an exquisite livery application using true-to-prototype colours, fonts and logos. Following the precedent set by the Bachmann Branchline Class 47, and subsequently the 37 and 31 too, the Class 25 features a full lighting suite and is available in three formats; standard, SOUND FITTED as in the case of this example which is pre-fitted with a DCC Sound Decoder, or SOUND FITTED DELUXE with the award winning motorised radiator fan and authentic tinted windscreen glazing features!
- Bachmann Branchline OO Scale
- Era 8
- Locomotive is now Preserved
- Pristine BR Two-Tone Green (Full Yellow Ends) livery
- Running No. D7672
- SOUND FITTED - Fitted with a Zimo MS450P22 DCC Sound Decoder – See below for the function list
DETAIL VARIATIONS SPECIFIC TO THIS MODEL
- Late Body with Cantrail Grilles – Class 25/3
- Glazed Headcode Panels – displaying Blinds 1E11 and 1Z45
- Modified Short Exhaust
- Bodyside Boiler Vent Grille
- Bodyside Steps
- Plated Bodyside Water Filler Door
- Battery Boxes with Additional Safety Clips
- Late Pattern Sand Boxes
- 510 Gallon Fuel Tank
- Electronic Speedo
BACHMANN BRANCHLINE CLASS 25 SPECIFICATION
MECHANISM:
- Five pole, twin shaft motor with two flywheels providing drive to both bogies
- All axle drive
- Electrical pickup from all wheels
- Separate metal bearings fitted to each axle
- Diecast metal chassis block and bogie towers
- Diecast metal gearboxes, with gearing arranged for prototypical running speeds and haulage capabilities
- 16.5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
- Detachable coupling pockets to NEM362 standards fitted to each bogie
- Designed to operate on curves of second radius (438mm) or greater
DETAILING:
- Bogies constructed from multiple components featuring full relief detail
- Rotating radiator fan, driven by an independent motor and gearbox, operated as part of the sound project on DCC and Analogue control (SOUND FITTED DELUXE models only)
- Tinted windscreen glazing (Driver and Second Man windscreens only as per the prototype, SOUND FITTED DELUXE models only)
- Separately applied metal detail parts, including grab handles, windscreen wipers and etched radiator grilles
- Sprung metal buffers
- Cab interior detailing which includes the control desk, seats and ancillary equipment, all with era-specific decoration
- Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts including three-piece, body-mounted snow ploughs where appropriate
LIGHTING:
- Directional lighting, including illuminated headcode panels, switchable on/off at either end on DCC or Analogue control
- Cab lighting*, assigned to two DCC functions for separate switching of each
- Separately switched Engine Room lighting* (*when used on DCC)
- Authentic light colours and temperatures selected for each model based on era and application
DCC:
- Plux22 DCC decoder interface
SOUND:
- A quality speaker employed for optimum sound reproduction, fitted to every model as standard
- Zimo MS450P22 DCC Sound Decoder fitted to SOUND FITTED and SOUND FITTED DELUXE versions
- Sound files produced specifically for the Bachmann Branchline Class 25 using recordings from real locomotives
- SOUND FITTED and SOUND FITTED DELUXE models operate on DCC and Analogue control as supplied. On Analogue, an authentic engine start up sequence and running sounds are produced when power is applied
LIVERY APPLICATION:
- Authentic liveries applied to all models
- Multiple paint applications employed on each model using BR and corporate specification colours
- Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
- In addition, where applicable Etched Nameplates are also provided
SOUNDS
- F0 - Directional Lights - On / Off (plus Light Switch Sound)
- F1 - Sound On/Off
- F2 - Brake
- F3 - Single Horn
- F4 - Two-Tone Horn
- F5 - Light Engine Mode
- F6 - Engine Idle
- F7 - Speed Lock
- F8 - Cold Start
- F9 - Flange Squeal (Speed Related)
- F10 - Despatch Whistle
- F11 - Buffering Up
- F12 - Coupling Up / Uncoupling
- F13 - Compressor
- F14 - Fan Noise
- F15 - Detonators
- F16 - Combined Pump
- F17 - Auto Wagon Buffering
- F18 - On - Driver's Door Opening / Off - Driver's Door Closing
- F19 - Fade All Sounds
- F20 - No. 1 End (Fan) Directional Lights Off
- F21 - No. 2 End (non-Fan) Directional Lights Off
- F22 - Cab Light On - No. 1 End
- F23 - Cab Light On - No. 2 End
- F24 - Engine Room Lights
- F25 - Automatic Drain Trap
- F26 - Shunt Mode
- F27 - Volume Down
- F28 - Volume Up
Analogue Users: Please note that normal load running sounds and any other automatic or randomised sounds will also operate when this model is used on analogue control (DC) straight from the box!
CLASS 25 HISTORY
Following publication of the British Railways Modernization Plan in 1955, the British Rail Class 25 diesels were introduced into service in 1961 and were more powerful than the Class 24 Bo-Bo diesels introduced three years earlier. A total of 325 Class 25 Diesel Locomotives over several sub-types were built, most at BR Derby, but some were constructed at Crewe and Darlington with a further 26 built by Beyer Peacock of Manchester.
As Type 2 locomotives, the Class 25s were often seen working in pairs to increase operational power. The class was, however, a true mixed traffic locomotive, equally at home on either passenger or mixed freight duties. They were well suited to the task of replacing steam traction on duties over a wide area of the British Railways system and were allocated to numerous depots across the Eastern, London Midland, Scottish and Western Regions. Although not allocated to the Southern Region, they were often seen on incoming and through traffic from the other regions. Following closure of numerous lines in the late 1960s and the resultant loss of passenger work, during the 70s & 80s they were more likely to be seen on either freight, newspaper, parcels or specialized duties. with notable examples including the provision of train heating for steam hauled specials in their swansong years. The Class was finally withdrawn from service in 1987, but twenty preserved locomotives survive to the present day.
