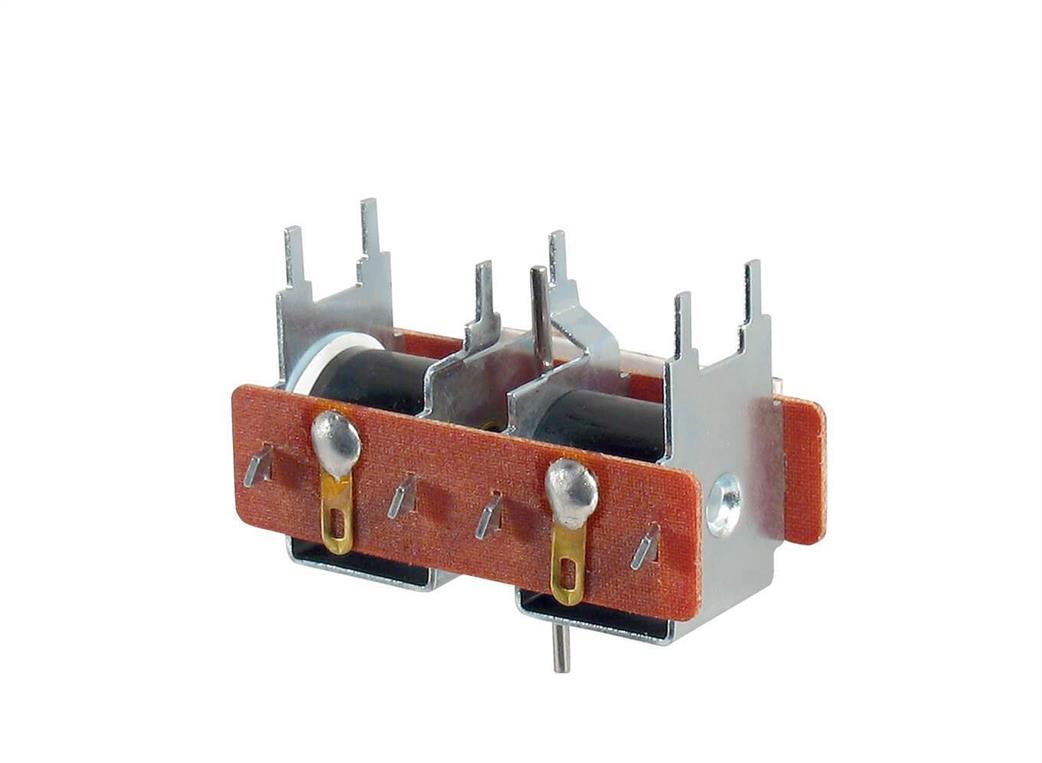

Peco PL-10 Point Motor

Peco PL-10 Point Motor

This motor attaches directly to the underside of the point to ensure positive and reliable operation. Requires a 40 x 25mm hole in the baseboard to accommodate the motor. Operation is from a passing contact switch or probe and stud system to give a pulse from the 16v AC outlet found on most transformers (2 amps required). If this isn't available an uncontrolled 12v DC supply may suffice.
Use only a pulse as applying a constant current would burn out the motor.
£9.25
MRP £9.25
Warehouse: 3
Bristol: 5, Plymouth: 5
Fast delivery from Warehouse.
(Product Ref 31748)
