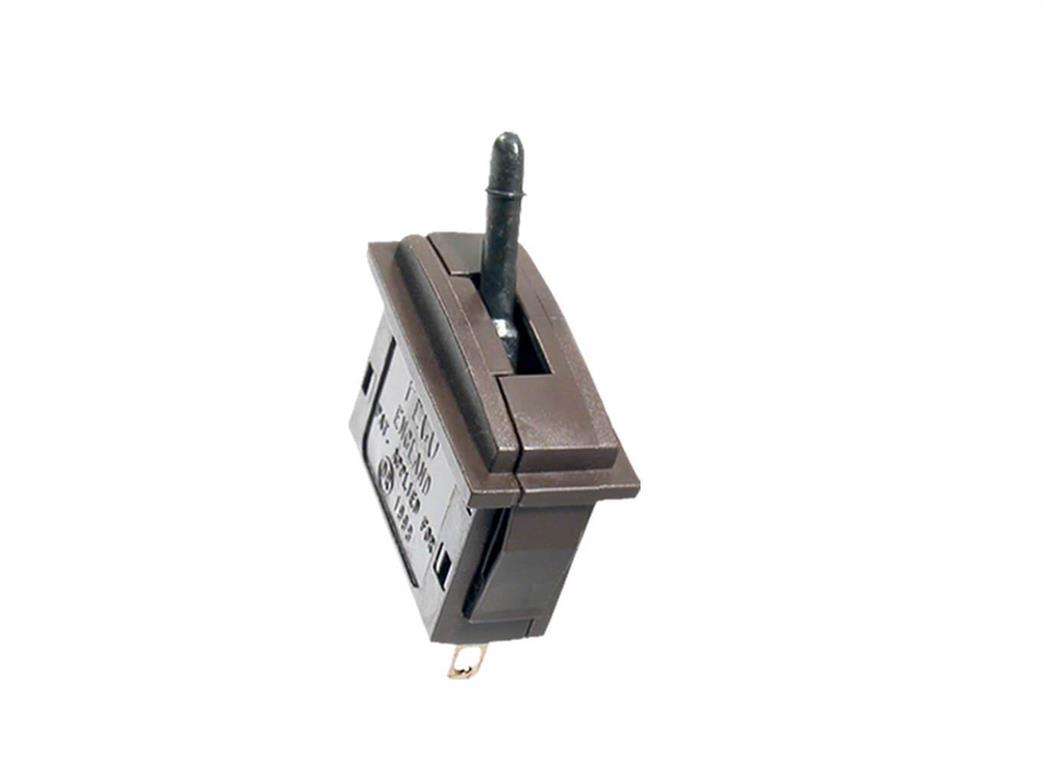

Peco PL-26B Passing Contact Switch Black Lever

Peco PL-26B Passing Contact Switch Black Lever

Provides the short burst of current required to operate the PL-11 and PL-10 series of Turnout Motors. The PL-31 Connectors are ideal for attaching the PL-34 Wiring Looms or PL-38 wire to these switches without soldering; the included Shrouds prevent current 'shorting out' between the terminals.
£9.75
MRP £9.75
Warehouse: 3
Bristol: 2, Cardiff: 6, Gloucester: 6, Stroud: 5
Fast delivery from Warehouse.
(Product Ref 31764)
